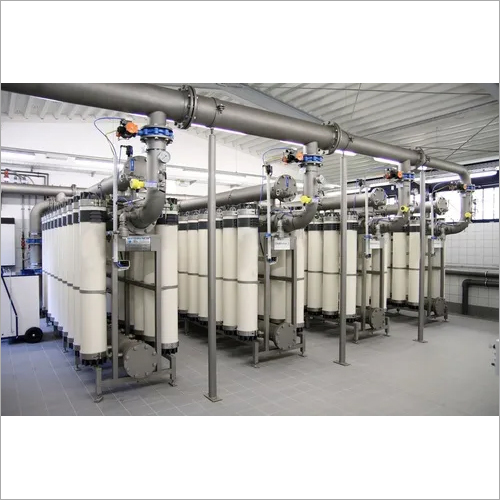

About Ultra Filtration Plant
ULTRA FILTRATION
- Ultrafiltration plant is designed on the basis of 4 membranes or modules which are:
- Spiral wound module which less expensive yetmore sensitive to pollution and consisting consecutive layers of large membrane
- Plate and frame module: combination of platesand membranes to improve the bad quality of water
- Tabular membrane: it is not compact and verycostly as compare to others fluids discharge activities.
- Hollow fiber membrane: containing small tubesor fibers to carry out inside-out and outside-in filtration process.
Working Principle
Features of Ultra Filtration Plant
- Excellent filter performance with high flux.
- High removal efficiency of bacteria and viruses.
- Periodically back washed and air scoured for consistent performance
- Simple, vertical,modular design allows low cost, compact systems.
- Fully automated control system for back washing process.
- Advanced custom designed Control Cubicle.
- Stainless /carbon steel equipment frame
- Control panelwith standard PLC and HMI interface mounted on equipment frame.
- All alarm and shut down conditions are indicated on the control interface.
- Permeate, back pulse pumps, membrane aeration blowers and associated valving mounted on equipment frame.
Applications of Ultra Filtration Plant
- Pre & Post Treatment for RO Plant
- Cooling Tower makes up & blows down Water Treatment
- Drinking Water
- Water For injection (WFI)
- Waste water recycling
- Zero Liquid discharge system
- Tertiary Treatment
- River Water Treatment
- Colloidal silica removal
- Packaged drinking water
- Paint waste water treatment
- Oil removal / Oil refining process
- Dialysis machine
Product details
|
Control Panel IP Rating
|
IP 56
|
|
Operating Pressure
|
50 to 70 bar
|
|
TFC Spiral Wound Membranes Diameter
|
8 inch
|
|
Power Supply
|
380 V / 50Hz / 3 Phase
|
|
Operation
|
Semi Automatic / Automatic
|
|
Nominal Membrane Pore Size
|
0.1 to 0.001 micron
|
|
Module Mounting
|
Vertical
|
|
Housing Material
|
UPVC
|
Advanced Filtration TechnologyUtilizing TFC spiral wound membranes, this ultrafiltration plant achieves outstanding contaminant reduction. Its high-end membrane technology supports a purity level ranging from 0.1 to 0.001 micron, efficiently eliminating particulates, microbes, and colloidal materials from groundwater sources. Designed to deliver consistently clear water, it stands out for its reliability in industrial applications.
Robust Construction for DurabilityCrafted with UPVC housing and vertical module mounting, the plant is engineered for long-term use, minimizing corrosion and ensuring low maintenance. The IP56-rated control panel safeguards the system's electricals from dust and water intrusion, enhancing the durability and safety of the plant in diverse operational environments.
Easy Integration and OperationDesigned for flexible operation, the plant offers both semi-automatic and automatic modes, addressing different user needs. Its electric power supply is compatible with standard 3-phase, 220V/50Hz systems, ensuring easy integration into existing facilities, whether in manufacturing, export, or water treatment industries.
FAQ's of Ultra Filtration Plant:
Q: How does the Ultra Filtration Plant purify water from ground sources?
A: This plant uses TFC spiral wound ultrafiltration membranes with pores ranging from 0.1 to 0.001 micron, effectively removing suspended solids, bacteria, and other contaminants from groundwater through a high-pressure (50-70 bar) filtration process.
Q: What is the optimal operating pressure for this ultrafiltration plant?
A: For best performance, the system should operate at pressures between 50 and 70 bar, ensuring efficient filtration and consistent output.
Q: When should I use semi-automatic versus automatic operation modes?
A: You can select semi-automatic mode when manual intervention is preferred for specific control, or switch to automatic mode for continuous, hands-free operation, depending on your facility's requirements.
Q: Where can this filtration plant be installed?
A: Its robust UPVC vertical mounting and other flexible installation options allow it to be set up in a variety of settings such as industrial facilities, water treatment plants, or manufacturing units, particularly where groundwater is the main source.
Q: What benefits does the vertical module mounting provide?
A: Vertical module mounting offers a compact footprint, easy maintenance access, and optimizes membrane utilization, ensuring a space-saving and efficient plant setup.
Q: How is the control panel protected in harsh environments?
A: The IP56-rated control panel provides strong resistance against dust and significant water ingress, safeguarding the plant's electronic components, which is especially beneficial in challenging industrial conditions.
